Product Description:
Floor stand LED screen is a versatile and interactive display solution often used in
public spaces, retail environments, conferences, and exhibitions.
Here are the key features of a typical floor stand LED screen:
1. Display Quality
- High Resolution: Supports HD, Full HD, or 4K resolution for crisp and clear
visuals.
- Brightness: High brightness levels, making it suitable for both indoor and
outdoor use.
- Wide Viewing Angle: Ensures visibility from multiple angles.
- Vivid Colors: High color contrast and accuracy for eye-catching displays.

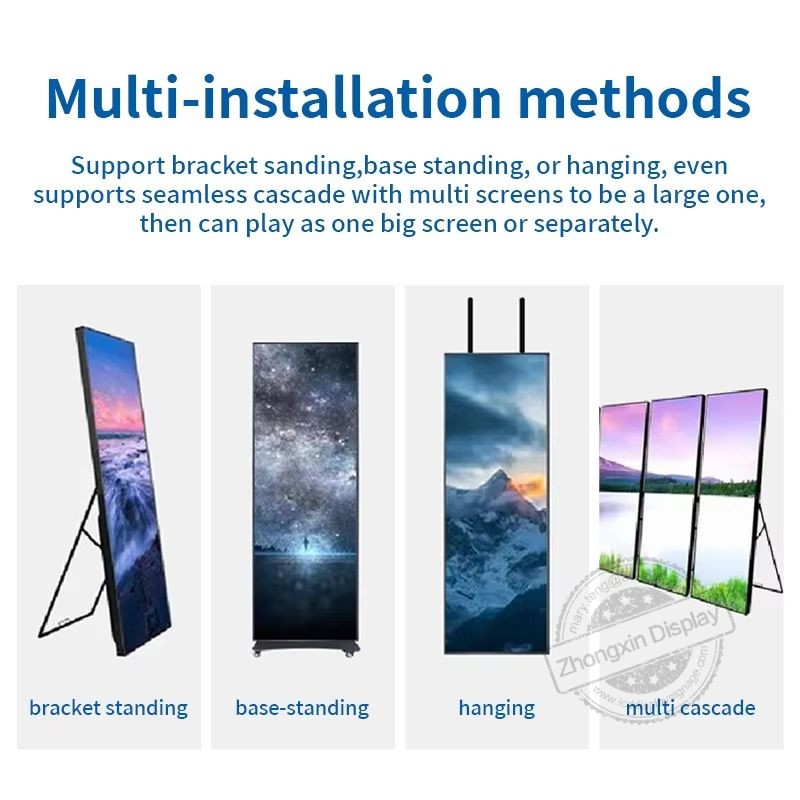

2. Portability and Mounting
- Mobile Stand: Often equipped with wheels for easy transport.
- Adjustable Height: Allows for customization based on audience or application.
- Stable Base: Designed for balance and safety in public spaces.
3. Interactivity
- Touchscreen Options: Available with touch functionality for interactive applications.
- Gesture Control: Advanced models may support gesture-based interaction.
4. Connectivity
- Multiple Input Options: HDMI, USB, VGA, DVI, and wireless options like Wi-Fi or
Bluetooth.
- Plug-and-Play: Easy to connect to laptops, media players, or other devices.
- Smart Features: Many models are equipped with Android or other operating systems
for app integration.
5. Durability
- Rugged Build: Designed to withstand public use and transport.
- Weather Resistance: Some models are built to resist dust, moisture, or outdoor
elements.
6. Software Integration
- Content Management Systems (CMS): Allows scheduling and management of displayed content.
- Remote Control: Enables operation and troubleshooting from a distance.

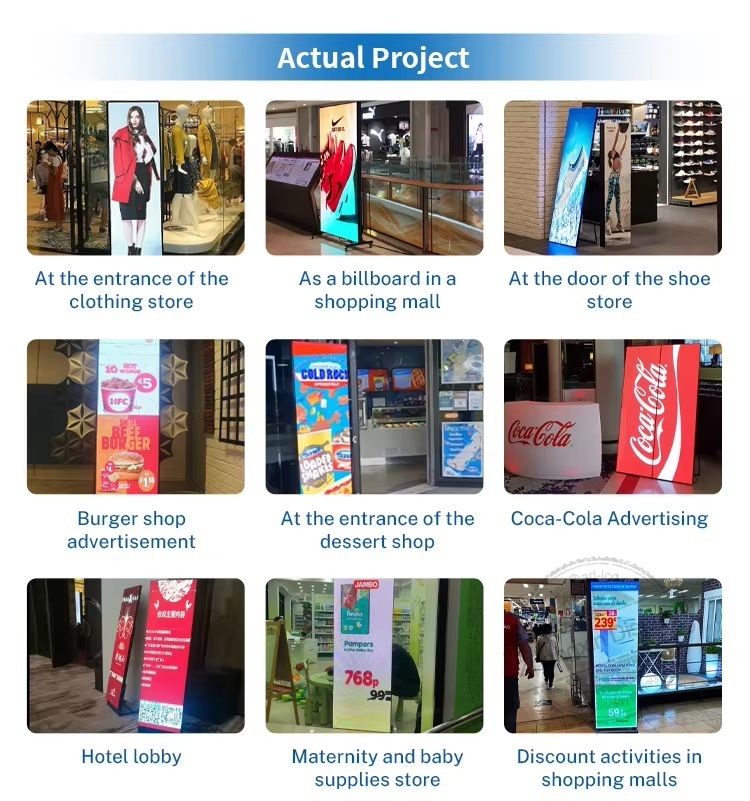

7. Applications
- Retail: Digital signage, promotions, and advertisements.
- Corporate Events: Presentation and information displays.
- Public Information: Wayfinding, announcements, or public service information.
- Entertainment: Interactive games or digital art displays.
Technical Parameters:
| Model No | A1.6 | A1.8 | A2.0 | A2.5 | A3.0 |
| Pixel pitch | P1.6mm | P1.8mm | P2mm | P2.5mm | P3mm |
| LED lamp | SMD1010/SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Pixel resolution | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 |
| Module size | 320x160 | 320x160 | 256x128 | 320x160 | 320x160 |

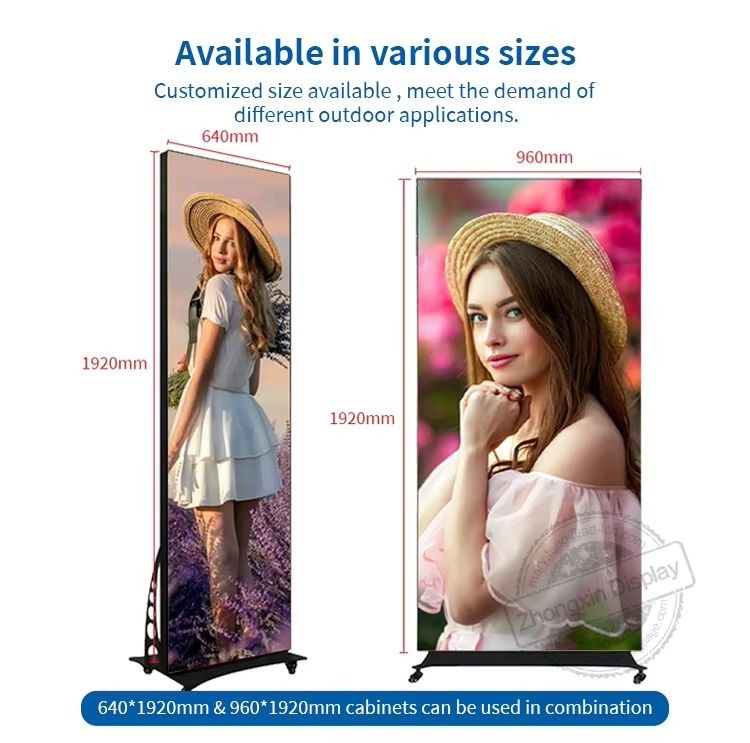

| Poster screen size | 640x1920mm | 640x1920mm | 512x1792mm | 640x1920mm | 640x1920mm |
| or customize size | or customize size | or customize size | or customize size | customize size |
| Scan | 1/48 | 1/40 | 1/32 | 1/32 | 1/26 |
| Pixel Composing | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Cabinet Material | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet |
| Cabinet Weight | 50kg | 50kg | 46kg | 50kg | 50kg |
| Viewing Angle | H:140° V:140° | H:140° V:140° | H:140° V:140° | H:140° V:140° | H:140° V:140° |
| Color Temperature | 6000-9500K | 6000-9500K | 6000-9500K | 6000-9500K | 6000-9500K |
| Gray Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Max Power Consumption | 550W/m2 | 550W/m2 | 550W/m2 | 550W/m2 | 550W/m2 |
| Average Power Consumption | 230W/m2 | 230W/m2 | 230W/m2 | 230W/m2 | 230W/m2 |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Brightness | 800-1500nits | 800-1500nits | 800-1500nits | 800-1500nits | 800-1500nits |
| Ingress Protection | IP43 | IP43 | IP43 | IP43 | IP43 |
| Operating Temperature | 1-20C~60C | -20C~60C | -20C~60C | -20C~60C | -20C~60C |
| Operating Humidity | 10%~65%RH | 10%~65%RH | 10%~65%RH | 10%~65%RH | 10%~65%RH |
| Input Voltage | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz |
| NTBF | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours |
| Life Time | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
Applications:
Meetings, Videos, Etc: Equipped with a front facing camera suitable for daily work and
life video needs, it can support screen mirroring.
Kitchen, Games, Music: Use landscape mode for movies, rotate it 90 degrees for social
media in portrait mode, or lay it flat in table mode for board
games and music.
Indoor Clothing Matching:Controlling the Portable Tablet TV is as easy as touching the
screen,making it simple for everyone in the family to enjoy.
Support and Services:
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished
products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect
condition before shipment. We also accept the inspection by the
third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the products
from your purchase date, except the human damage and force majeure
factor. For a better maintenance, be sure that the players are
using under normal circumstances (not more than 16 hours daily).
Beyond the guarantee period machine, Zhongxin will provide
maintenance service and technical support (Hardware and other
possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70%
balance should be paid before the delivery of the goods.
