65inch Brightness 16.7M Color Digital Signage IP65 Waterproof
digital signage outdoor displays
Product Description:
With its stunning 16.7M display color, this external electronic
screen delivers immersive and lifelike images that are sure to
capture people's attention. Whether it is used for advertising,
wayfinding, or information display purposes, this outdoor digital
signage product offers outstanding visibility that can be seen from
a distance.
One of the key features of this product is its remote management
capability. This means that users can easily control and update the
content of the sign from a remote location, making it an ideal
solution for businesses with multiple locations or for those who
want to save time and resources on manual content updates.
Another critical aspect of this outdoor digital signage product is
its wide view angle of 89 / 89/ 89 / 89. This ensures that the
display can be seen from different angles without losing image
quality or brightness. Whether it is placed on a busy street or in
a crowded public area, this sign will provide clear and bright
visuals that can be easily read and understood.
Moreover, this product is built to withstand various weather
conditions, thanks to its IP65 waterproof rating. This means that
it can resist dust, water, and other outdoor elements, making it
ideal for use in outdoor environments.
Overall, this Outdoor digital signage product is an excellent
investment for businesses and organizations looking for a reliable
and high-quality solution for their outdoor advertising and
information display needs. With its remote management capability,
stunning display color, wide view angle, and waterproof design,
this product is sure to provide outstanding performance and
durability for years to come.
Features:
- Product Name: Outdoor digital signage
- Display Color: 16.7M
- View Angel: 89 / 89/ 89 / 89
- Waterproof: IP65
- Brightness: 2000-3500 Nits
- Usage: Outdoor

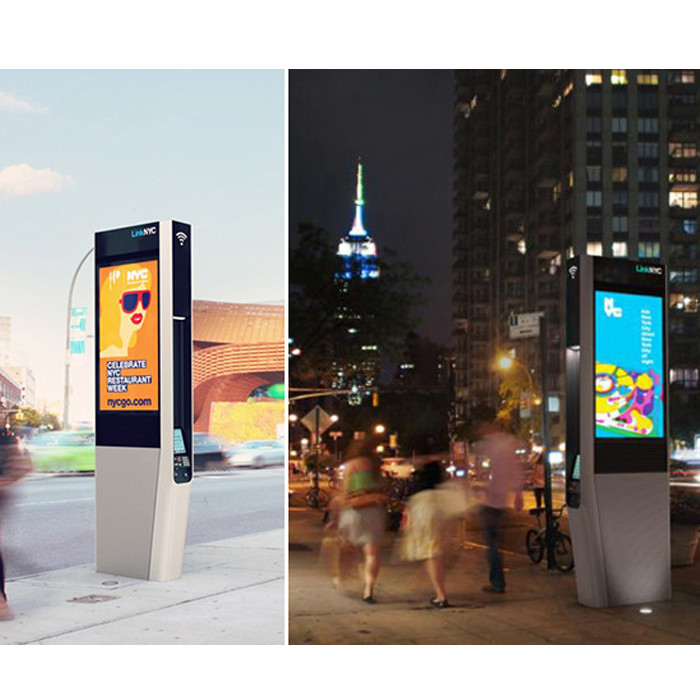

- This product is perfect for Al fresco digital advertising, Outside
digital billboards, and Street digital displays.
| Operation OS | Android OS | Windows OS |
| CPU | Quad-core Cortex-A17 | I3/I5/I7 |
| Memory | DDR3 1GB up to 8GB | DDR3 8GB up to 32GB |
| Built-in Storage | 8GB up to 32GB FLASH/EMMC | DDR3 SSD 128G/256G/512G FLASH/EMMC |
| Network | Wifi,RJ45,Bluetooth | Wifi,RJ45,Bluetooth |
| Support Port | USB,HDMI Output,SD/TF solt,DC In,Switch | USB,HDMI/VGA Output,DC In,3.5mm jack,Switch |
Technical Parameters:
| Panel Parameter | Panel size | 65inch |
| Panel brand | LG, BOE, TFT lcd screen, LED backlight |
| Resolution | 1920x1080 FHD, 3840x2160 UHD |
| Active area (H/V) | 1428.48 x 803.52 mm |
| Dot pitch (H/V) | 0.248x0.744 mm |
| Pixel pitch (H/V) | 0.744x0.744 mm |
| View angle (H/V) | 178°/178° |
| Brightness | 2000-3500dc/m2 |
| Contrast ratio | 4000:01:00 |
| Display color | 16:7M (8bit) |
| Life time | 60000 Hrs |
| Response time | 6ms |
| Touch screen | Types | Capacitive Multi touch 10points |
| Tempered Glass | Surface Protection | 6mm thickness Standard / 6.0mm AR Glass Optional |
| Screen Light | Light sensor | Automatic light sensor |
| Fan Cooling System | EBM Fan Cooling | EBM centrifugal wind, intellgent temperature-controlling system |
| EBM Fan+Heaters | -5°C heater self-heating,support continue 20-30°C,contunue +65°C
Auto power off |
| Max Power watts | 540W |
| Working temperature | ,-20°C ~ +50°C |
Air-conditioner
Cooling System | Air condtioner | Industrial air-conditioner |
| Max Power watts | 1200W |
| Working temperature | -35°C ~ +55°C |
| Other | Temperature control | Auto adjusted |
| Frame material | 1.5mm Cold-roll steel sheets (SPCC) |
| Frame color | Black, Grey, White, other color support |
| Speaker | 2 x 10W |
| Menu Language | Multi-language, English defualt |
| Voltage input | AC 108-115V, AC 208-240V |
| Support | Dustproof, Waterproof, Oilproof, Anti-thunder, AC contactor,Time
control switch,Air switch,Intelligent temperature control system |
Applications:
- Retail: Promote sales, new product launches, and store openings to
attract foot traffic and drive sales in retail environments.
- Transportation: Inform travelers about transportation schedules,
route changes, and safety messages at bus stops, train stations,
and airports.
- Hospitality: Advertise hotel amenities, restaurant menus, and local
attractions to guests at resorts, hotels, and tourist destinations.
- Events: Enhance event promotions and increase attendance by
showcasing event details, schedules, and ticket information in
outdoor venues and public spaces.
Customization:
1. Landscape or portrait mode
2. Built-in clock, can automatically sync the time from network
3. Preset time play, Auto play in loop
4. Material
support:video(1080P),music,picture,txt,ppt,excel,word,pdf,webpage
etc.
5. Multiple timer switch can be set
6. Easy to remotely control all the terminal by server
7. Support split screen,such as video,date,news,weather and all of
them can be displayed on the terminal simultaneously
8. Power off memory: continuous previous play when power on
9. Playing logs: keep all playing records automatically
10. Advertising insert function
11. Static text, roling text and rolling caption are supported
12. Support real-time control and remote update and upgrade by
server
13. Support to upgrade the contents to built-in memory by inserting
USB
14. The user can real-timely monitor the working condition of all
terminals through server
15. Support to install your own APK
Support and Services:
Our Outdoor digital signage product comes with a comprehensive
technical support and services package to ensure the smooth
operation and maximum uptime of the product. Our services include:
- 24/7 technical support hotline
- Regular software updates and maintenance
- Remote monitoring and troubleshooting
- Repair and replacement services
- Training and documentation
Our experienced team of technicians and support staff are dedicated
to providing prompt and effective solutions to any technical issues
that may arise with the product. We also offer customized service
packages to meet the specific needs of our customers.
