16 9 Display Ratio Wall Mount Capacitive Industrial Touch Monitor
with CMS Software
Features:
1. Adopting imported LCD technology and our patented transparent
screen technology, making our transparent screen transparency the
best in the industry.
2. Screen production is carried out in the dust-free workshop, with
the most rigorous quality control system and the most complete
service team.

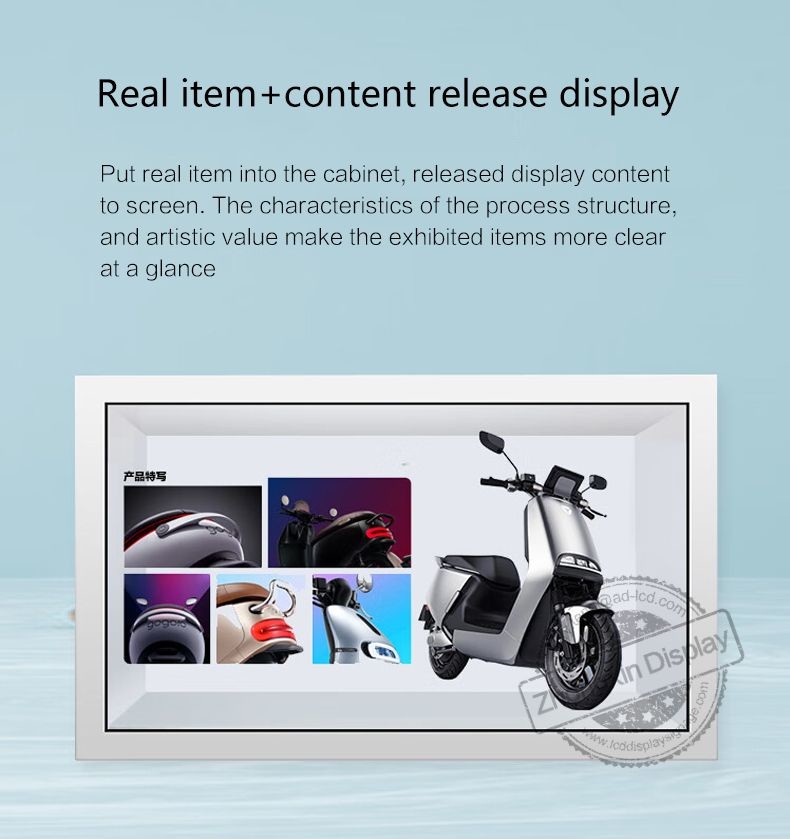

3. The display cabinet adopts the front/rear door opening/taking
method to display the real objects, which is convenient to operate
in different places.
4. With a transparent display, you can play the advertisement
content of the promotional display, interact with online and
offline, and see clear physical display through the screen.
5. Layout in places with large flow of people or modern high-tech
can not only propagate products and ideas, but also serve as a
carrier of advertising and propaganda to achieve double
profitability.
6. The product meets the functional requirements of the current
virtual reality, has a very good display experience, and has a
high-tech sense.
| Operation OS | Android OS | Windows OS | USB/SD Card Version |
| CPU | Quad-core Cortex-A17 | I3/I5/I7 | Mastar solution |
| Memory | DDR3 1GB up to 8GB | DDR3 8GB up to 32GB | 8GB to 32GB |
| Built-in Storage | 8GB up to 32GB FLASH/EMMC | DDR3 SSD 128G/256G/512G FLASH/EMMC | No |
| Network | Wifi,RJ45,Bluetooth | Wifi,RJ45,Bluetooth | No |
| Support Port | USB,HDMI Output,SD/TF solt,DC In,Switch | USB,HDMI/VGA Output,DC In,3.5mm jack,Switch | USB,HDMI input,SD/TF solt,Switch |
Technical Parameters:
| LCD Panel Parameter |
| Style name | 49'' inch wall mounted lcd display |
| Support size | 2.1.5" to 86" |
| Type | TFT LCD SCREEN, LED BACK LIGHT |
| LCD Brand | BOE/LG/Samsung/Innolux/AUO etc. |
| Resolution | 1920 x 1080 FHD (16:9) 2K / 3840 x 2160 UHD (16:9) 4K |
| Display Area(H / V) | 1073.78(H) x 604(V)mm |
| Dot Pitch 2K/4K (H/V) | 0.1864×0.5592 mm/0.0932x0.2796 mm |
| Pixel Pitch 2K/4K (H/V)mm | 0.5592×0.5592 [45PPI]/0.2796x0.2796 [90PPI] |
| Brightness | 350-700cd/m2 |
| Contrast Ratio | 1200-3000 : 1 |
| Display Color | 16:7M(8bit) |
| View Angle (H / V) | 178°/178° |
| Response Time | 6ms |
| Tempered glass | 4.0mm (For protectiving LCD) |
| Touch Sensor | Infrared 10 points / Capcitive touch screen 10 points |
| Other Specifications Techical |
| Frame material | cold rolled steel sheet boday,aluminum alloy edge |
| Colored System | PAL/NTSC/Auto-detecting |
| Menu Language | Multiple language,English(Default) |
| Speakers | 2×5W |
| Noise Reduction | Yes |
| Voltage | 100V-240V AC , 50/60Hz |
| Life Time | 60000 Hrs |
| Power Consume (Max) | 78-118W |
| Working Temperature | 0°C~50°C |
| Working Humidity | 10% - 90% no condensation |
| Storage Temperature | -20°C - 60°C |
| Storage Humidity | 10% - 95% no condensation |
Applications:
Support and Services:
Our Digital signage lcd product comes with comprehensive technical
support and services to ensure your satisfaction:
- Phone and email support for any technical.
- Product installation and setup assistance
- Regular firmware updates to ensure optimal performance and
compatibility
- Remote troubleshooting and diagnostic services
- Extended warranty options for added peace of mind
FAQ:
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished
products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect
condition before shipment. We also accept the inspection by the
third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the
products from your purchase date, except the human damage and force
majeure factor. For a better maintenance, be sure that the players
are using under normal circumstances (not more than 16 hours
daily).
Beyond the guarantee period machine, Zhongxin will provide
maintenance service and technical support (Hardware and other
possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70%
balance should be paid before the delivery of the goods.
