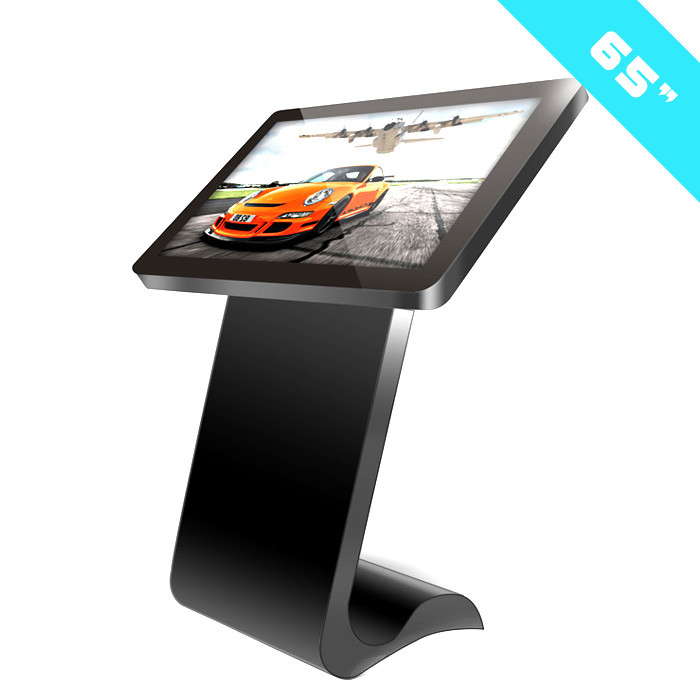

interactive displays 65 inch stand lcd tvs 55" professional full
color hd lcd tv touch table
1,Touchscreen Capability: The primary feature of LCD touch digital
signage is its touchscreen functionality, allowing users to
interact directly with the display by tapping, swiping, or pinching
gestures.
2,High-Resolution Display: The screen typically offer
high-resolution LCD panels, providing crisp and clear visuals to
showcase multimedia content in vivid detail
3,Interactive Content: The table can showcase a wide range of
interactive content, including multimedia presentations, maps,
product catalogs, educational simulations, games, and more. Users
can engage with the content directly on the tabletop surface.
4, built-in computer system or media player, providing the
processing power needed to run interactive applications and display
content smoothly
Function description
1, Support Media Play Format: MEPG4(AVI, DIVX,XVID),MEPG2(DVD, VOB, mpeg),MEPG1 (VCD, DAT, MPG),MP3,JPG,etc.
2. Timing management: Support turn on, turn off automatically by setting previously.
3. Power cut memory function: Support program power cut memory function. Program can be set continue with the time before
4. Play mode:
a: Support video, flash animation, images and text mix
broadcasting.
b: Up to 14 kinds of picture transition mode.
c: Video truly seamless playback.
d: Support rich display resolution: 1366x768,1440x900,1600x900, 1680x1050, 1920x1080"
5. Log management:
a: Fully record program broadcast date,time and broadcast times.
b: Terminal works log + Switch time record + Broadcast record log.
c: Remont control record + File import and software update record.
d: Terminal works l to Terminal log Abnoemal record.
e: Export log files by the terminal ID and date to the U disk.
f: Support retain logs up to 1 month,automatically delaeted the log
files beyond this time,With confidentiality locks, anti-theft functions.
Product Description
| Panel Parameter: |
| Product Name | Interactive Touch Kiosk |
| Brand | TFT BOE/LG/Samsung |
| Panel Size avaliable | 32 inch | 43 inch | 49 inch | 55 inch |
| Resolution | 1920x1080 | 1920x1080/3840x2160 |
| Display Are(HxV) | 698.4x391.9 | 941x529 | 1074x605 | 1210x680 |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 |
| Dot Pitch(mm)(HxV) | 0.121x0.365 | 0.163x0.490 | 0.186x0.559 | 0.210×0.630 |
| Display Colour | 16:7M(8bit) |
| Brightness | 350-500cd/m2 |
| Contrast Ratio | 4000:1 |
| View Angle | 178/178 |
| Response Time | 6ms |
| Touch Screen optional | Infrared touch 10 points, Capacitive touch 10 to 20 points |
| Tempered Glass | 3.0mm (For protectiving LCD screen) |
| Specification |
| Windows OS | Windows 7/8/10 |
| CPU | Intel i3 / i5 / i7 |
| Graphics Hardware | Integrated with CPU |
| Memory | 4GB / 8GB / 16GB |
| Built-in Storage | DDR3 128GB SSD/256GB/512GB |
| Wifi/Lan/Bluetooth | Yes |
| Port | USB 2.0*2, USB 3.0*2, RJ45 *1, output*1, VGA output*1, Power *1,
Mini 3.5mm*1 |
| Android OS | Android 9.0-11.0 |
| CPU | RK3288 Quad-core, Cortex-A17 1.8GHz/ RK3399 Dual
Cortex-A72+Quad-core A53 CPU |
| Memory | 2GB/4GB/16GB |
| Built-in Stroage | DDR3 8GB/16GB/32GB |
| Wifi/Lan/Bluetooth | Yes |
| Port | USB 2.0*1, output*1, SD card solt*1, Power*1 |
| Other Specification |
| Frame material | cold rolled steel sheet boday,aluminum alloy edge |
| Color | Black, Silver, White, Gold, Customized color support. |
| Speakers | 2×5W |
| Menu Language | Multiple language, English is default. |
| Voltage Frequency | AC 100V～240V,50/60Hz |
| Horizon frequency | 30-80KHZ |
| PowerConsume(Max) | 50W to 205W |
| Working temperature | 0°C~+50°C |
| Working humidity | 10%-90% |
| Operating Temperature | 0°C~40°C |
| Storage temperature | ,-10°C~50°C |
| Storage humidity | 10%-90% no condensation |
| Support | 1) Network, Wifi, Bluetooth, 4G/5G optional 2) / VGA Output, No
input |
| 3) Updated contents by USB, or PC optional 4) Installing
application |
FAQ
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished
products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect
condition before shipment. We also accept the inspection by the
third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the products
from your purchase date, except the human damage and force majeure
factor. For a better maintenance, be sure that the players are
using under normal circumstances (not more than 16 hours daily).
Beyond the guarantee period machine, Zhongxin will provide
maintenance service and technical support (Hardware and other
possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70%
balance should be paid before the delivery of the goods.
