1, Ultra wide stretched LCD displays are characterized by their unique aspect ratio, which is
significantly wider than traditional displays,
2, Ultra-wide Aspect Ratio: Ultra wide stretched LCD displays typically have an aspect ratio
much wider than the standard 16:9 or 16:10 aspect ratios found in
most displays. Common aspect ratios for stretched displays include
16:3, 32:9, or even wider, depending on the specific model.
3, Long and Narrow Form Factor: They are ideal for applications where space is limited
horizontally but require displaying information over an extended
area vertically, such as digital signage in narrow spaces like
store shelves, transportation systems, or public information
displays
Specifications Techical:
| Screen size | 49.5 inch |
| Screen type | TFT LCD Screen with LED back light |
| Resolution FHD (16:9) | 1920 x 603P |
| Brightness | 400-500cd/m2 |
| Display Area(H/V)mm | 1209 x 480 |
| Pixel Pitch(H/V)mm | 0.58 x 0.58 |
| Contrast Ratio | 1000-3000 : 1 |
| Display Colour | 16:7M(8bit) |
| View Angle (H/V) | 178°/178° |
| Response Time | 6ms |
| Tempered glass | 3.0mm (For protecting LCD) |
| Touch screen | Capacitive touch / Non touch (optional) |
| USB/SD Version | SD card 8GB/16GB/32GB (optional) |
| Android OS 7.1 to 11 |
| CPU Processor | Quad Core 1.8GHz 64bits, RK3288 Cortex-A17 |
| Memory | DDR3 2GB/4GB/8GB (optional) |
| Buit-in Storage | 8GB/16GB/32GB (optional) |
| Wifi / Lan | Yes (2.4G Wifi, RJ45 ) |
| Port | RJ45, USB,HDMI Output, TF/SD card solt, |
| Windows OS WIN 7 to 10 |
| CPU Processor | Intel core i3 /i5 /i7 |
| Memory | DDR3 4GB to Max 32 GB |
| Buit-in Storage | SSD 128GB to 512 GB Max |
| Wifi / Lan | Yes |
| Port | RJ45, USB,HDMI Output, VGA output, DC-IN, LIN-OUT, MIC-IN |
| OTHERS |
| Frame material | Metal case(SPCC) |
| Colored System | PAL/NTSC/Auto-detecting |
| Speakers | 2×5W |
| Voltage | 100V-240V AC , 50/60Hz |
| Life Time | 60000 Hrs |
| Storage Temperature | -20°C - 60°C |
| Storage Humidity | 10% - 95% no condensation |

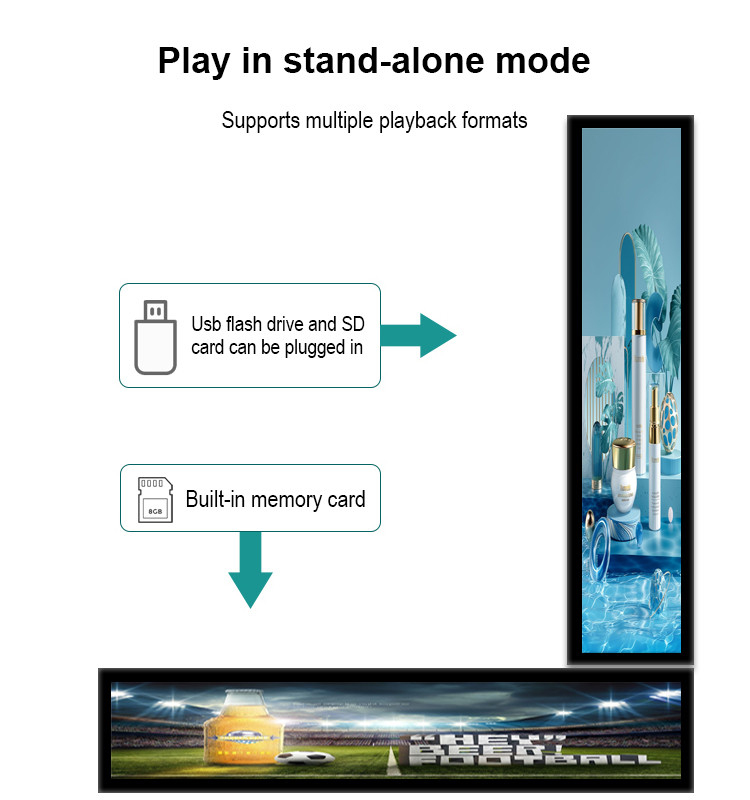

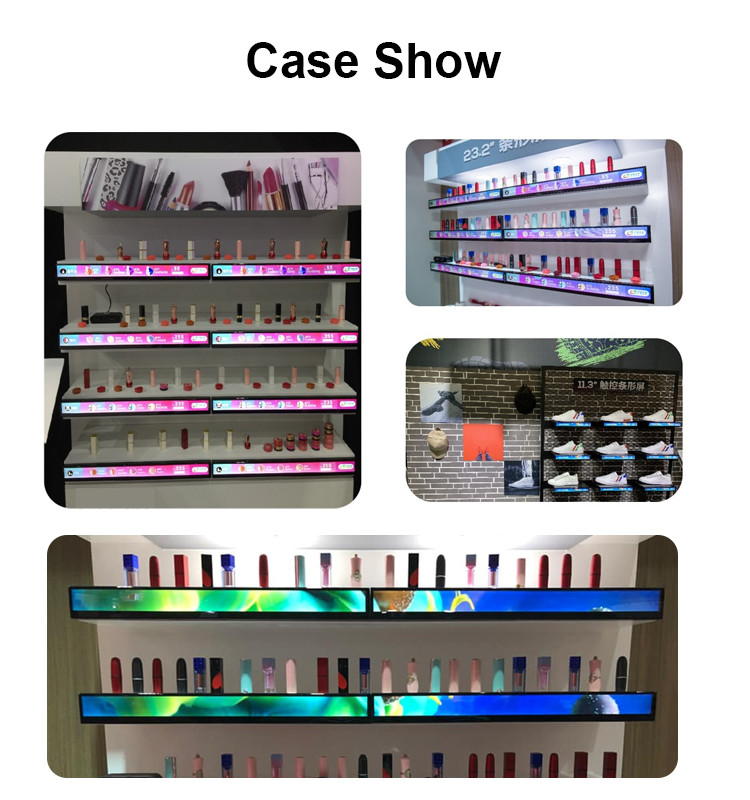

Product picture:
FAQ:
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished
products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect
condition before shipment. We also accept the inspection by the
third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the
products from your purchase date, except the human damage and force
majeure factor. For a better maintenance, be sure that the players
are using under normal circumstances (not more than 16 hours
daily).
Beyond the guarantee period machine, Zhongxin will provide
maintenance service and technical support (Hardware and other
possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70%
balance should be paid before the delivery of the goods.
