Product Description:
The 500 nits brightness ensures exceptional picture quality, even
in brightly lit environments.
Our video wall display is versatile and user-friendly, with input
ports including HDMI, DisplayPort, VGA, and DVI. This allows for
easy connectivity with various devices, such as laptops, media
players, and gaming consoles, making it a great choice for events,
conferences, and presentations.
With a contrast ratio of 4000:1, this video wall display offers
vivid and clear colors that will enhance any visual content. The
multi-screen video wall system allows your business to showcase
your content in a way that is both engaging and impactful, making
it a great choice for digital signage, advertising, and
entertainment purposes.
Our LCD video wall system is a powerful and flexible solution for
your business needs. With its 55-inch screen size, low power
consumption, high brightness, and multiple input ports, it is
perfect for events, presentations, and digital signage. The
multi-screen video wall system and contrast ratio of 4000:1 also
make it an ideal choice for advertising and entertainment purposes.
Features:
- Product Name: Video wall display
- Screen Type: LED back light, TFT lcd screen
- Viewing Angle: 178 Degrees
- Contrast Ratio: 4000:1
- High brightness optional: 500nits
- Bezel Width: 3.5mm
- Multi-screen video walls
- Large format wall displays
- Multi-screen video walls
Technical Parameters:
| PANEL PARAMETER |
| Panel Size | 65'' DID LCD Screen (super narrow bezel 3.5mm,with 500 nits LED Backlight) |
| Type | LED BACK LIGHT, LCD SCREEN |
| LCD Brand | DV-650FHM-NV0, DV650QUM-NV0 |
| Resolution (Default) | 1920 x 1080 (16:9) |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 4000 : 1 |
| Display Colour | 16:7M(8bit) |
| View Angle (H / V) | 178°/178° |
| Active Area (H / V) | 1428.48x803.52mm |
| Pixel Pitch (H / V) | 0.744x0.744mm |
| Response Time | <=6ms |
| Quality compensation technology | LTI,CTI |
| Motion compensation technolog | AUTO MOVE |
| Filter | 3D comb filtering, digital noise reduction |
| Video starnar | PAL,NTSC |
| Video Wall Controller |
| Digital signal input | HDMI×1； 1920x1080@60Hz backward compatibl |
| Computer signal inpu | VGA(DB-15) ×1；1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1；1080P(1920×1080) backward compatible |
| Composite Video Input/(AV) | CVBS(BNC)x1 |
| Composite Video Output | CVBS(BNC)x1 |
| RJ45/USB/RS232 | Yes |
| Other |
| Power Supply | AC100V～240 |
| Standby Power Consumption | <=3 |
| Shell material | Metal shell,anti-static,anti-magnetic,anti-strong electric field
interference |
| Installation way | Wall mount, floor standing mount,hanging mount |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20% - 80% |
| Storage Temperature | -20°C - 60°C |

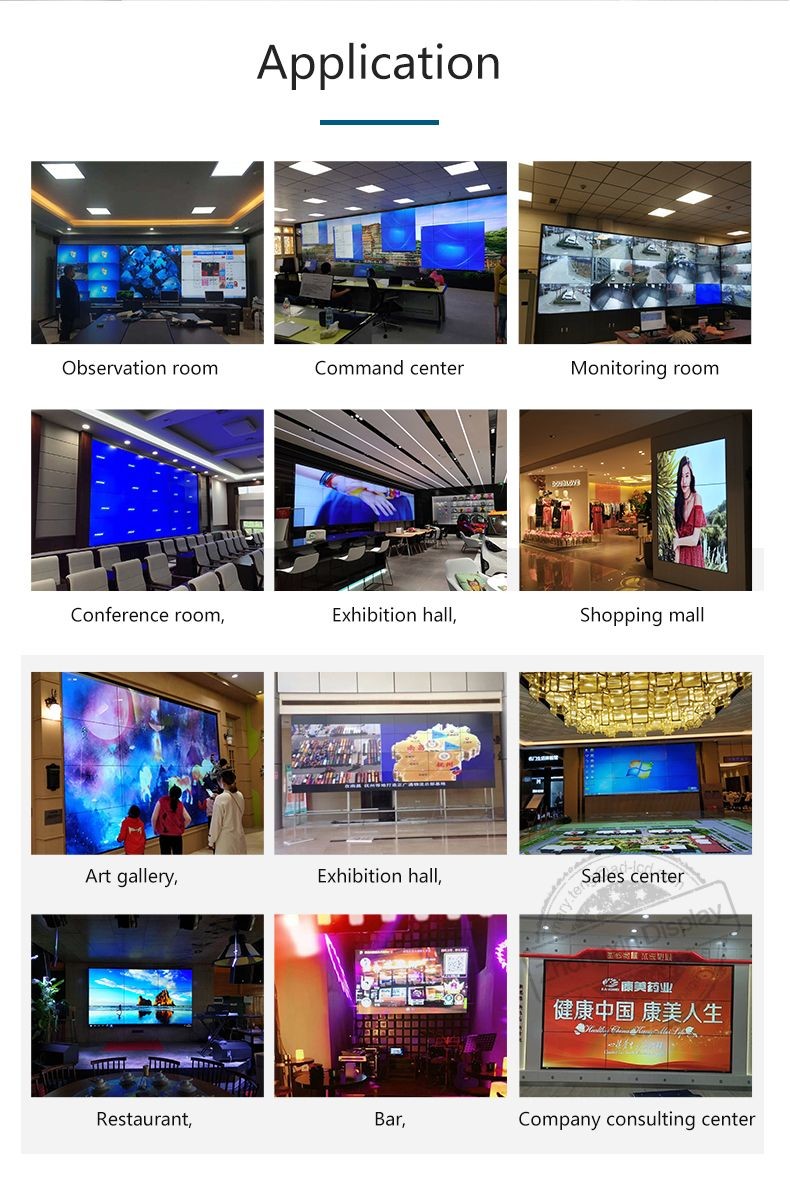

Applications:
- LCD videowall digital signage for control rooms for monitoring and
managing operations
- Retail stores, shopping malls, airports, hotels, and other public
spaces utilize LCD videowalls for digital signage purposes.
- Installed in conference rooms, boardrooms, and corporate lobbies to
facilitate presentations, video conferencing.
- Arenas, stadiums, theaters, and entertainment complexes
incorporate.
- Broadcasting Studios: Television studios, newsrooms, and
broadcasting.
- Command and Control Centers: Military, defense, and government
agencies use LCD videowalls in command and control centers for
monitoring critical infrastructure, surveillance feeds, and
strategic operations.
- Museums, galleries, trade shows, and exhibitions employ LCD
videowalls to showcase multimedia exhibits, interactive displays,
and immersive installations.
Support and Services:
Our Digital signage lcd product comes with comprehensive technical
support and services to ensure your satisfaction:
- Phone and email support for any technical.
- Product installation and setup assistance
- Regular firmware updates to ensure optimal performance and
compatibility
- Remote troubleshooting and diagnostic services
- Extended warranty options for added peace of mind
FAQ:
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished
products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect
condition before shipment. We also accept the inspection by the
third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the
products from your purchase date, except the human damage and force
majeure factor. For a better maintenance, be sure that the players
are using under normal circumstances (not more than 16 hours
daily).
Beyond the guarantee period machine, Zhongxin will provide
maintenance service and technical support (Hardware and other
possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70%
balance should be paid before the delivery of the goods.
